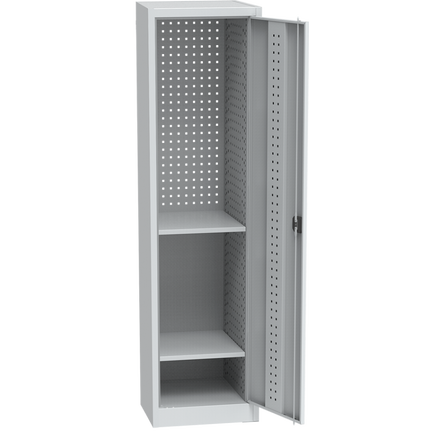

Universal Workshop Cabinet (505 mm) w/ DVB perforation, 2 shelves

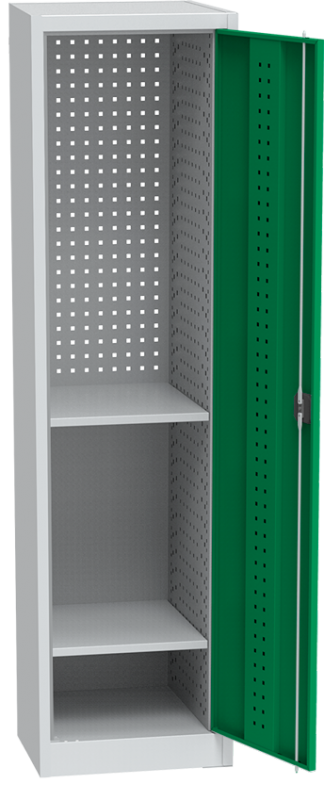

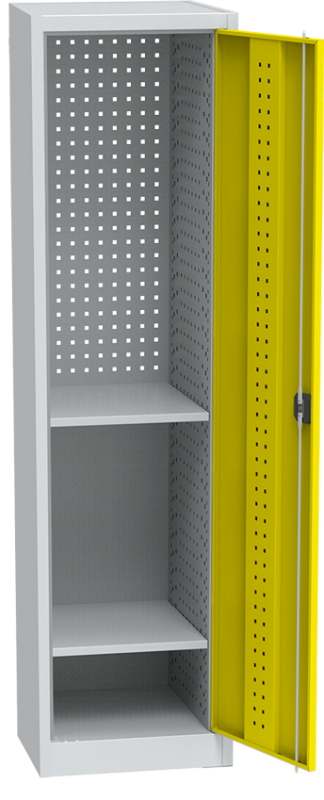

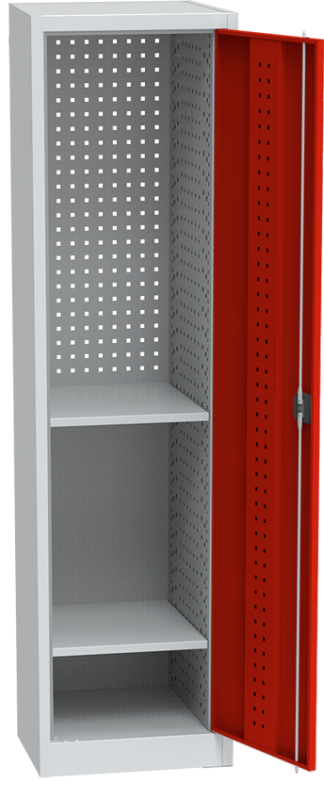

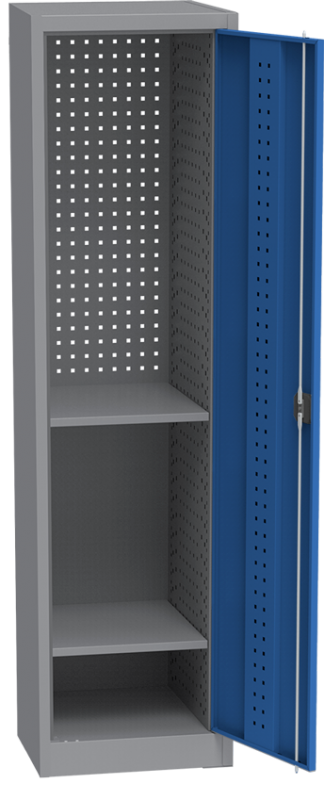

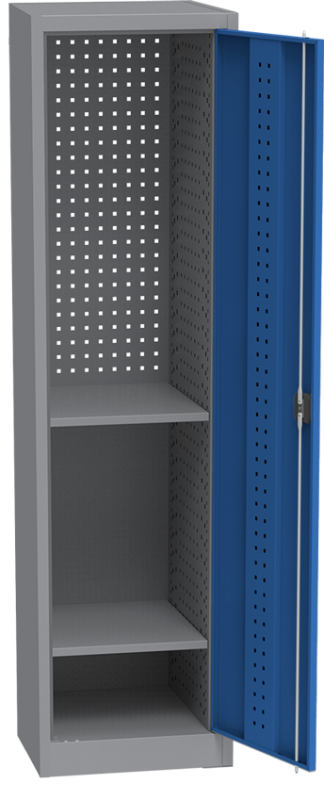

Colour design at standard prices:
| Height | 1950 mm |
|---|---|
| Width | 505 mm |
| Depth | 500 mm |
| Při koupi 1 ks | 325.29 EUR za ks | |
|---|---|---|
| Buy at least 2 a více ks | 292.78 EUR za ks |
Ušetříte 32.51EUR
|
Equipment
Perforated panel
Part of the product is a perforated panel for tool holder.
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
Turning poles mechanisms
Two-point door locking
Two-point door locking, bottom and top.
Door hanging
Internal hinge pins
Doors with internal hinge pins, allow an opening angle of 110°.
Internal layout
Cupboard drawer DUS
Cupboard drawer - 35kg capacity. (DUS_11_B-E, 13_B-E, 14_B-E)
Door types
Glass doors
Glass doors - 4mm thick tempered safety glass set in a steel frame.
Wire grate doors
Wire grate doors - Panel made of hammered metal wire and powder coated the same colour as the cabinet body. Grate hole size is 22 x 12mm, mounted in a steel frame.
Equipment
Shelf for workshop cabinets
Shelf for workshop cabinets - 60kg capacity.
Label
Plastic shell
Plastic shell for a name plate.
Základní popis
High-quality metal cabinet based on the design of our Heavy-Duty SPD series cabinets but with a lighter frame. This cabinet includes 2 adjustable shelves (25 mm steps) and compared to DUS_13_A this cabinet has an internal DVB perforation on the inside walls to accommodate the installation of adjustable 100mm drawers (DUS_13_Z10). It also comes standard with reinforced doors with an inner perforation for our QDN hooks for hanging various tools/accessories. This cabinet is ideal for production areas, garages, repair shops, testing rooms and laboratories as well as schools and training centers.
Uzávěry/zamykání
- GSB lock, 2 keys, 2000 combinations, possibility of Master Key
- Double-point door locking, top and bottom
Korpus/ skelet
- The Bottom of the cabinet frame is reinforced with metal feet
Vnitřní uspořádání
- 2 x adjustable workshop shelf w/ locking pins - (H x W x D) 22 x 380 x 462 mm - (DUS_13_P2)
- Shelves are adjustable (25 mm steps)
- DVB perforated interior wall cabinet for adjustable drawer installation (H x W x D) 100 x 382 x 460 mm - (DUS_13_Z10)
- Drawers are adjustable (50 mm steps)
- Drawers have a telescopic steel ball slide w/ 100% extension and are made of single sheet so are therefore only available in one color.
Dveře
- Steel door with internal perforated reinforcement for hanging tool holders KOVOS - QDN.
- Doors made with 0.7mm thick sheet metal
- Inner pins (hingeless) with 110° angle of openingParameters
Height: 1950 mmWidth: 505 mm
Depth: 500 mm
Weight: 60 kg
Počet oddělení / dveří: 1
Počet polic: 2
Nosnost korpusu: 400 kg
Nosnost police: 60 kg
