Description

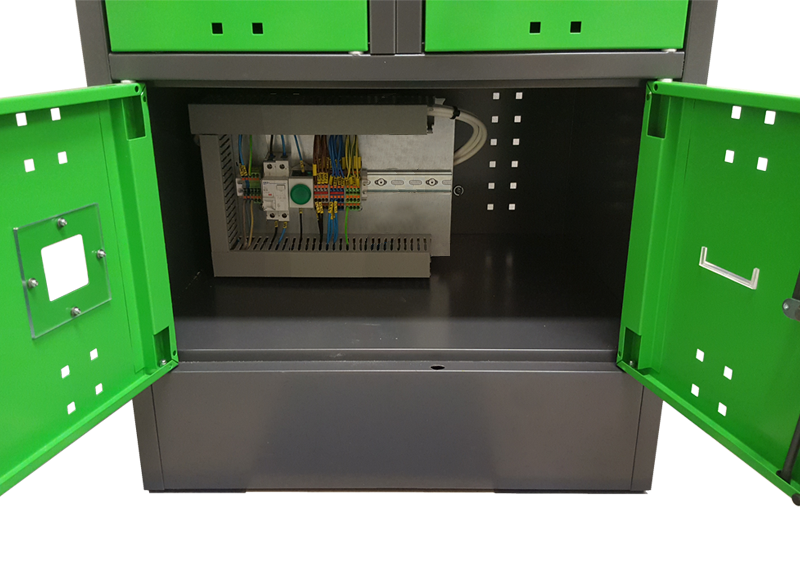

This locker is ideal for charging laptops, mobile phones, tablets, cameras or other portable electronic devices. Each box has its own 230V socket. The locker has a separate locked service area. It includes a surge protector with a 16A circuit breaker and an LED operation indicator. All electrical equipment, including installation, is in accordance to current EU standards. Each locker is checked by a registered electrician and comes with a professional review report. It is suitable for placement in schools, workplaces, shopping malls, or other public areas such as conferences, corporate events, or trade fairs.

Locks / locking

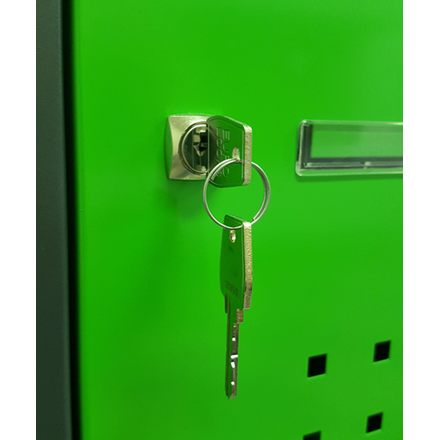

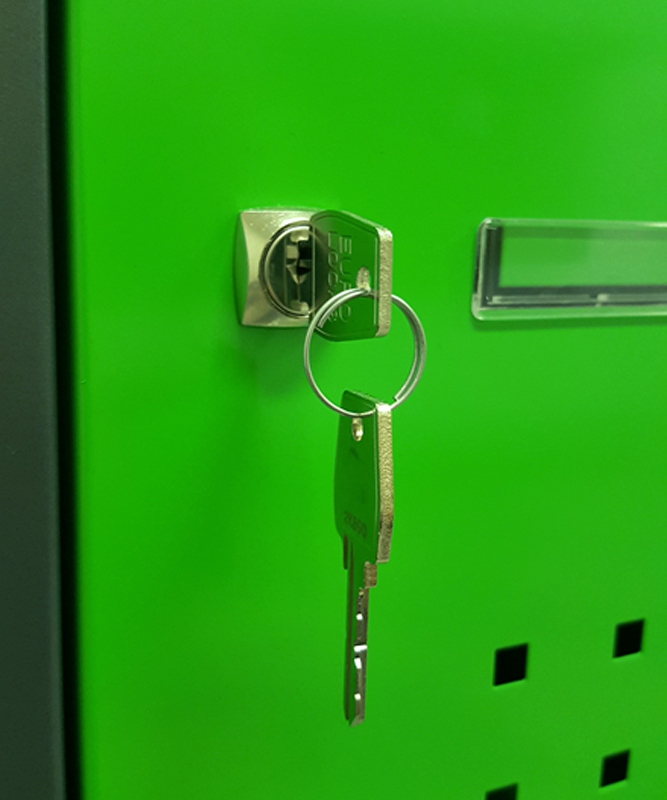

The standard version of this locker comes with a single-point locking mechanism with a cylindrical lock (2 keys, 2000 combinations, master key option). Doors can also be equipped with coin or coded electronic locks.

Shell/frame

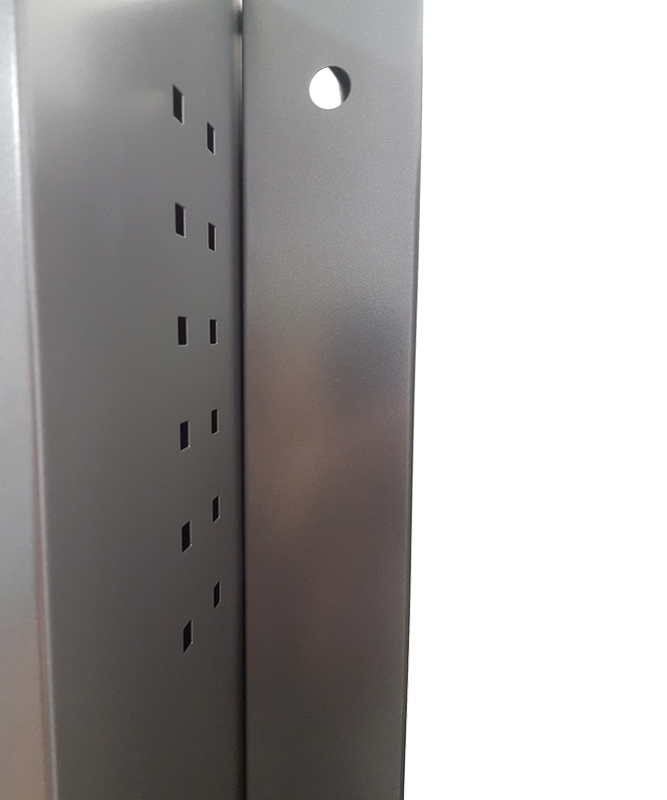

The locker frame is made of high-quality welded steel sheet 0.7mm thick. High quality DB703 Gray Metallic Smooth powder coating is used for the body of the locker. The back of the locker has sufficient perforation to ensure sufficient ventilation of the individual compartments.

Internal layout

Each individual compartment is equipped with a 230V socket. The door opening dimensions are 151 x 350mm (H x W) - (diagonally 380mm). The internal box dimensions are (H x W x D) 170 x 398 x 470mm. A standard 17 " laptop can be stored in each individual compartment.

Door

The doors of the are powder-coated using RAL 6018. Custom colors are available, please contact us for more info. Each door is perforated for ventilation, a closed reinforcement profile on the hinged side, a two-point locking mechanism, and a plastic label.

Další vybavení

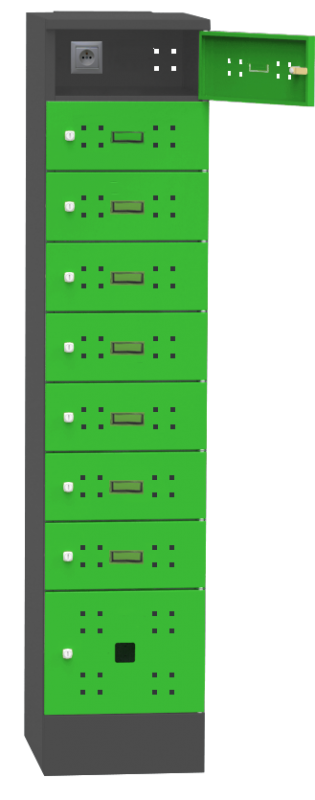

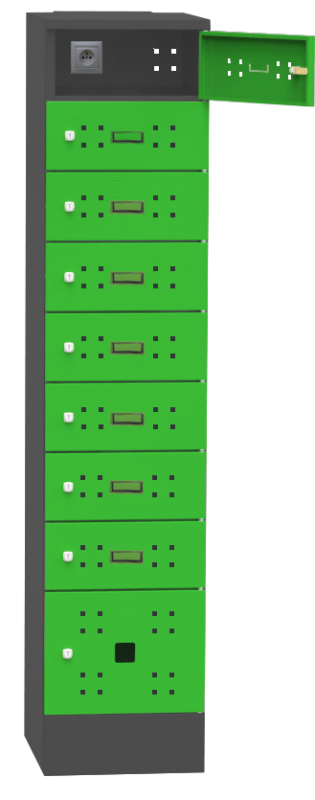

Technical parameters: • Door mounted on single internal wire • Externally mounted doors • Doors open to 110 ° • Perforated doors for ventilation • Plastic label on each door • Single-point door locking mechanism with cylindrical locks • Perforated rear panel of locker for ventilation • Each compartment includes a 230V / 16A electrical socked • 8 user compartments + 1 service compartment (single larger compartment) • Service compartment has a small window for quick operation checks • LED for status display - operation • Input power cable 5m • Professional Revision (documents provided with each locker) • protected by a surge protector as well as a 16A circuit breaker • Internal box dimensions are 170 x 398 x 470mm (H x W x D) • Door opening dimensions are 151 x 350mm (H x W)

Parameters

Height: 1850 mm
Width: 400 mm
Depth: 580 mm
Weight: 48 kg
Number of compartments/doors: 8

Links and downloads

Výkres produktu (218.45 KB)

1 pc	1442.47 EUR per pc
For 2 or more pc	1298.24 EUR per pc	Save 144.23EUR
